四脚夹件、BK EI型变压器 |
|
四脚夹件、BK EI型变压器是小型横式骑马夹型、直插线路板的延伸产品，具有规格型号多样、容量相对较大、为四脚螺丝固定安装方便简单等优点；本公司配备了各种接线端子来方便客户选型；
|
| 产品详细说明 |
|
容量范围：25VA~30KVA
缺点：大功率变压器体积较为笨重；

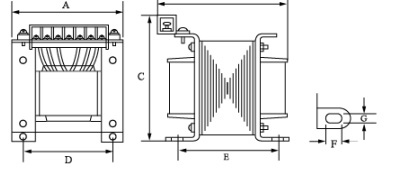

四脚夹件、BK技术参数
| 型号 |
功率W |
A |
B |
C |
D |
E |
安装孔FXG |
| 22X28 |
25 |
66 |
51 |
60 |
57 |
46 |
4X7 |
| 22X32 |
30 |
66 |
53 |
60 |
57 |
50 |
4X7 |
| 22X35 |
35 |
66 |
57 |
60 |
57 |
53 |
4X7 |
| 22X38 |
40 |
66 |
68 |
60 |
57 |
56 |
4X7 |
| 22X45 |
55 |
66 |
75 |
60 |
57 |
63 |
4X7 |
| 25X25 |
25 |
76 |
51 |
68 |
65 |
44 |
6X7.5 |
| 25X32 |
40 |
76 |
60 |
68 |
65 |
51 |
6X7.5 |
| 25X35 |
50 |
76 |
67 |
68 |
65 |
54 |
6X7.5 |
| 25X42 |
70 |
76 |
70 |
68 |
65 |
61 |
6X7.5 |
| 25X45 |
80 |
75 |
78 |
68 |
65 |
64 |
6X7.5 |
| 25X62 |
130 |
75 |
94 |
68 |
65 |
81 |
6X7.5 |
| 28X32 |
50 |
86 |
60 |
75 |
73 |
54 |
6X7.5 |
| 28X36 |
65 |
86 |
62 |
75 |
73 |
58 |
6X7.5 |
| 28X40 |
80 |
76 |
72 |
75 |
73 |
62 |
6X7.5 |
| 28X44 |
100 |
76 |
80 |
75 |
73 |
66 |
6X7.5 |
| 28X50 |
120 |
76 |
77 |
75 |
73 |
72 |
6X7.5 |
| 32X33 |
70 |
96 |
68 |
85 |
78 |
53 |
5X8 |
| 32X40 |
100 |
96 |
75 |
85 |
78 |
60 |
5X8 |
| 32X45 |
130 |
96 |
82 |
85 |
78 |
65 |
5X8 |
| 32X50 |
150 |
96 |
86 |
85 |
78 |
70 |
5X8 |
| 35X50 |
200 |
105 |
80 |
93 |
88 |
70 |
5X8 |
| 35X56 |
250 |
105 |
90 |
93 |
88 |
76 |
5X8 |
| 38X62 |
350 |
114 |
100 |
102 |
97 |
87 |
6.5X10.5 |
| 44X45 |
250 |
132 |
102 |
120 |
112 |
81 |
6.5X10.5 |
| 44X50 |
300 |
132 |
92 |
120 |
112 |
86 |
6.5X10.5 |
| 44X55 |
380 |
132 |
112 |
120 |
112 |
91 |
6.5X10.5 |
| 44X58 |
400 |
132 |
102 |
120 |
112 |
94 |
6.5X10.5 |
| 50X55 |
500 |
150 |
106 |
135 |
130 |
99 |
6.5X10.5 |
| 50X62 |
600 |
150 |
112 |
135 |
130 |
106 |
6.5X10.5 |
| 50X67 |
700 |
150 |
117 |
135 |
130 |
111 |
6.5X10.5 |
| 50X71 |
800 |
150 |
119 |
135 |
130 |
117 |
6.5X10.5 |
| 50X80 |
1000 |
150 |
130 |
135 |
130 |
126 |
6.5X10.5 |
| 64X80 |
1500 |
192 |
145 |
175 |
162 |
112 |
5.5X9.5 |
| 64X88 |
2000 |
192 |
155 |
175 |
162 |
120 |
5.5X9.5 |
| 64X100 |
2500 |
192 |
168 |
175 |
162 |
132 |
5.5X9.5 |
| 80X85 |
3KVA |
240 |
153 |
259 |
200 |
135 |
7X12 |
| 80X100 |
4KVA |
240 |
168 |
259 |
200 |
150 |
7X12 |
| 80X110 |
5KVA |
240 |
178 |
259 |
200 |
160 |
7X12 |
| 80X120 |
6KVA |
240 |
188 |
259 |
200 |
170 |
7X12 |
| 80X140 |
8KVA |
240 |
208 |
259 |
200 |
190 |
7X12 |
| 80X160 |
10KVA |
240 |
228 |
259 |
200 |
210 |
7X12 |
| 90X100 |
5KVA |
270 |
206 |
282 |
225 |
170 |
8X14 |
| 90X110 |
6KVA |
270 |
216 |
282 |
225 |
180 |
8X14 |
| 90X130 |
8KVA |
270 |
236 |
282 |
225 |
200 |
8X14 |
| 90X140 |
10KVA |
270 |
246 |
282 |
225 |
210 |
8X14 |
| 90X160 |
13KVA |
270 |
266 |
282 |
225 |
230 |
8X14 |
| 90X180 |
15KVA |
270 |
286 |
282 |
225 |
250 |
8X14 | | |
